7010 Rotary Microtome

Precise and Repeatable Sectioning

Developed to offer precise, repeatable sectioning of surgical biopsies for histopathological analysis, our 7010 Rotary Microtome plays an essential role in histology and pathology studies across the globe.

Our machines are recognised worldwide for their efficacy in sectioning very thin samples of paraffin wax embedded tissue. They are extremely stable and versatile, with adjustable blade holders a key feature of the design.

A Trusted Name

Bright Instruments is a trusted UK company which has been established for 85 years. We are renowned for the high quality of our microtome products.

Our clients benefit from bespoke solutions and a wide range of service options delivered by our in-house engineers. All product purchases are protected by a three-year warranty with a free service option at the end of the first year.

Read on to discover more about this exceptional microtome.

Expert Product Design

We are delighted with the design of the 7010 Rotary Microtome, the result of years of experience serving the needs of Biomedical Scientists.

Precise cross roller bearings and screw rod, combined with a five-phase high-resolution stepper motor and a link block made from aviation quality aluminium. These ensure a resilient machine and quality tissue sectioning.
Dual handwheel locking system protects the user during sample changeover.
5-inch large touchscreen, operable even with gloves.
Visual pointer with visible angle adjustment delivers rapid and more precise positioning across one or multiple devices.
Side sample feeding knob, making operation of the machine more comfortable
Knife holder capable of precise adjustments and including scales to support positioning decisions.
Optimal safety features include: knife guard, electronic brake and dual handwheel locking system to protect the user during sample changeover.
Side controls designed to minimise Repetitive Motion Disorders (RMD).
Magnetic function allowing for easy disassembly and cleaning.
Large capacity, specially coated waste tray for easy and rapid cleaning.
Information tracking via operation and alarm logs.

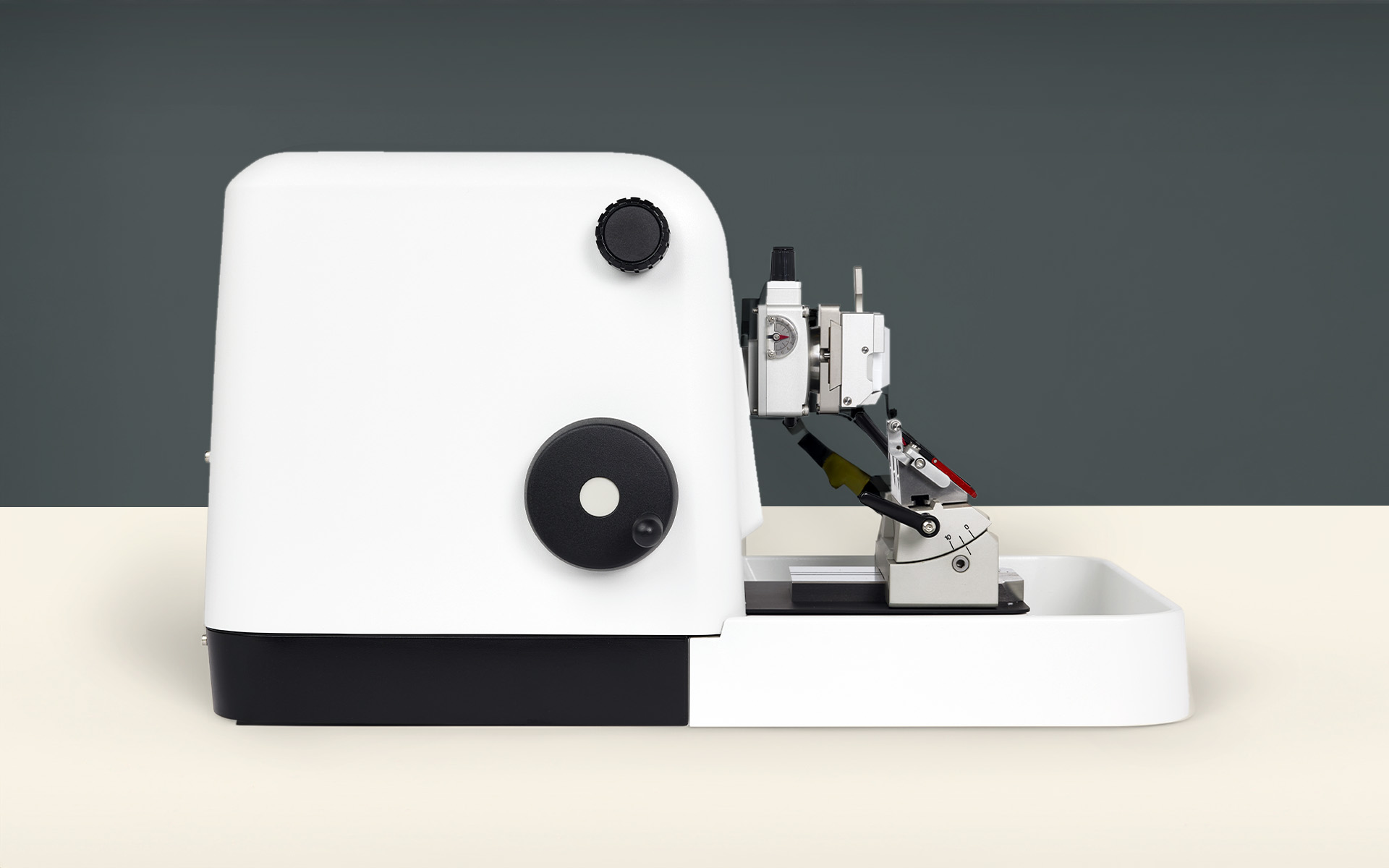

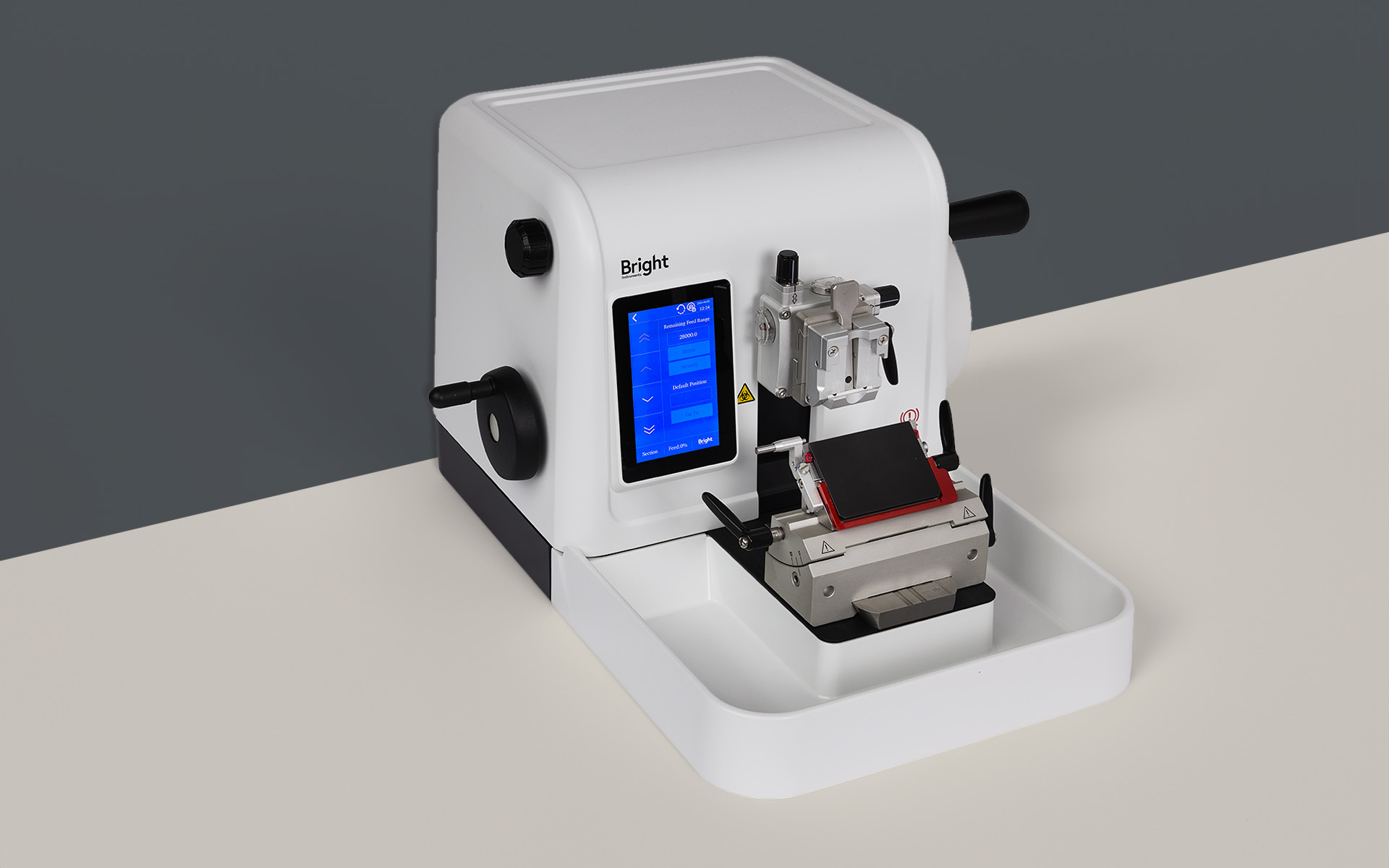

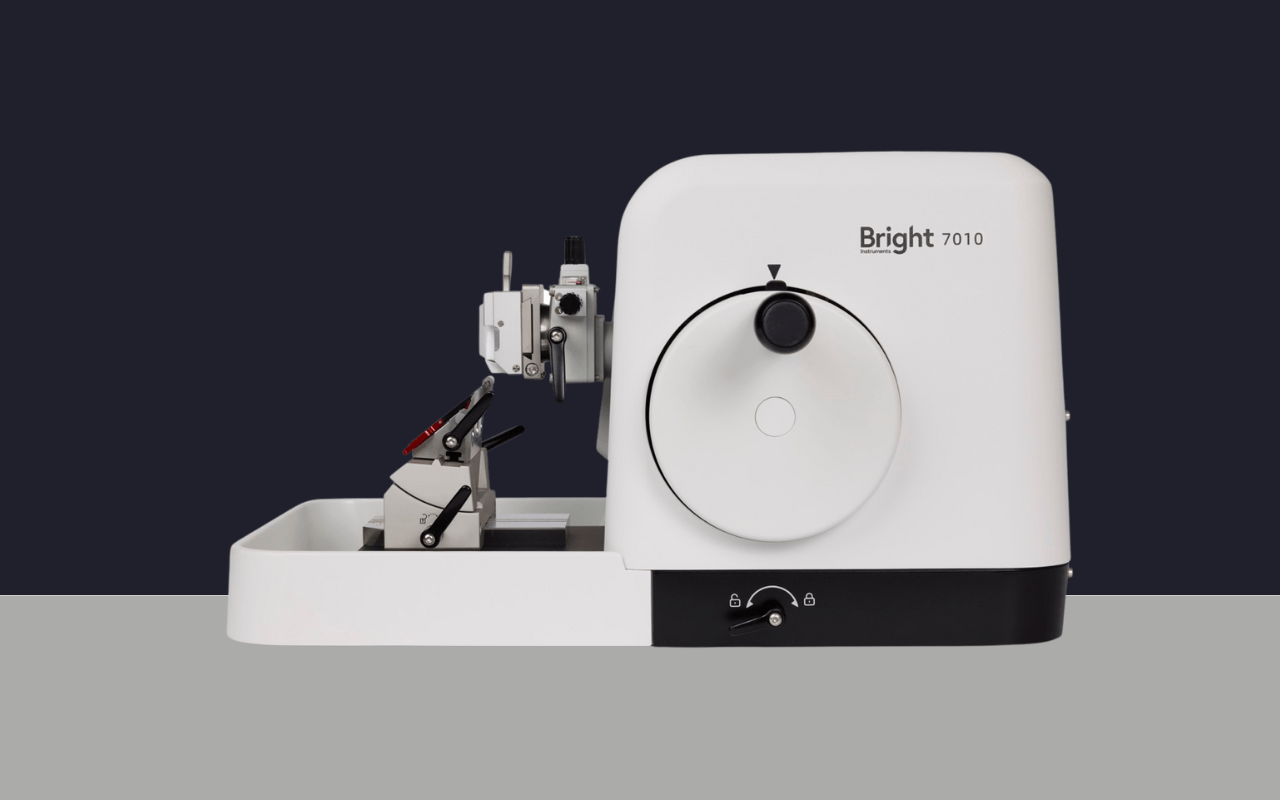

Rotary Microtome 7010 free standing lab equipment right side view

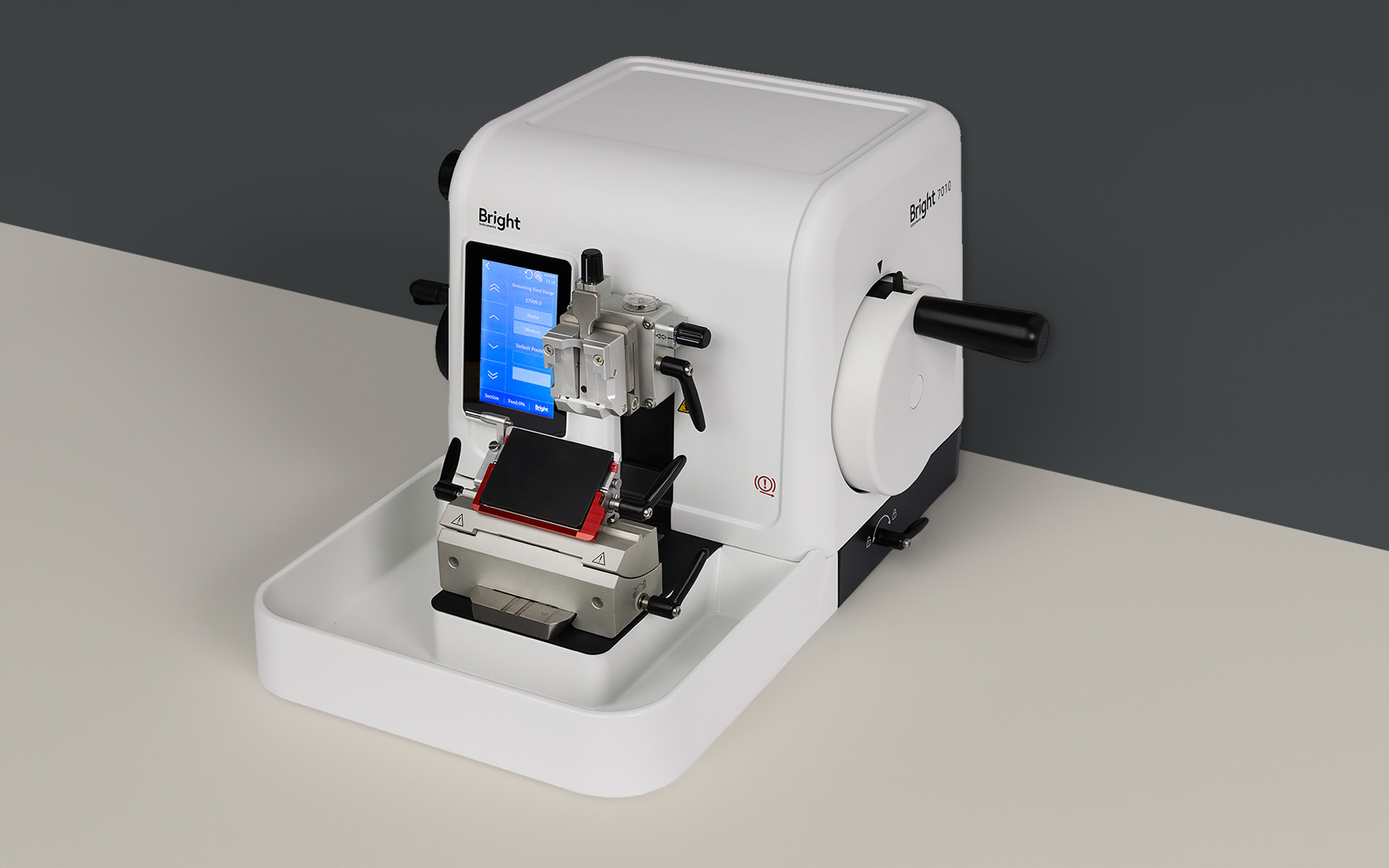

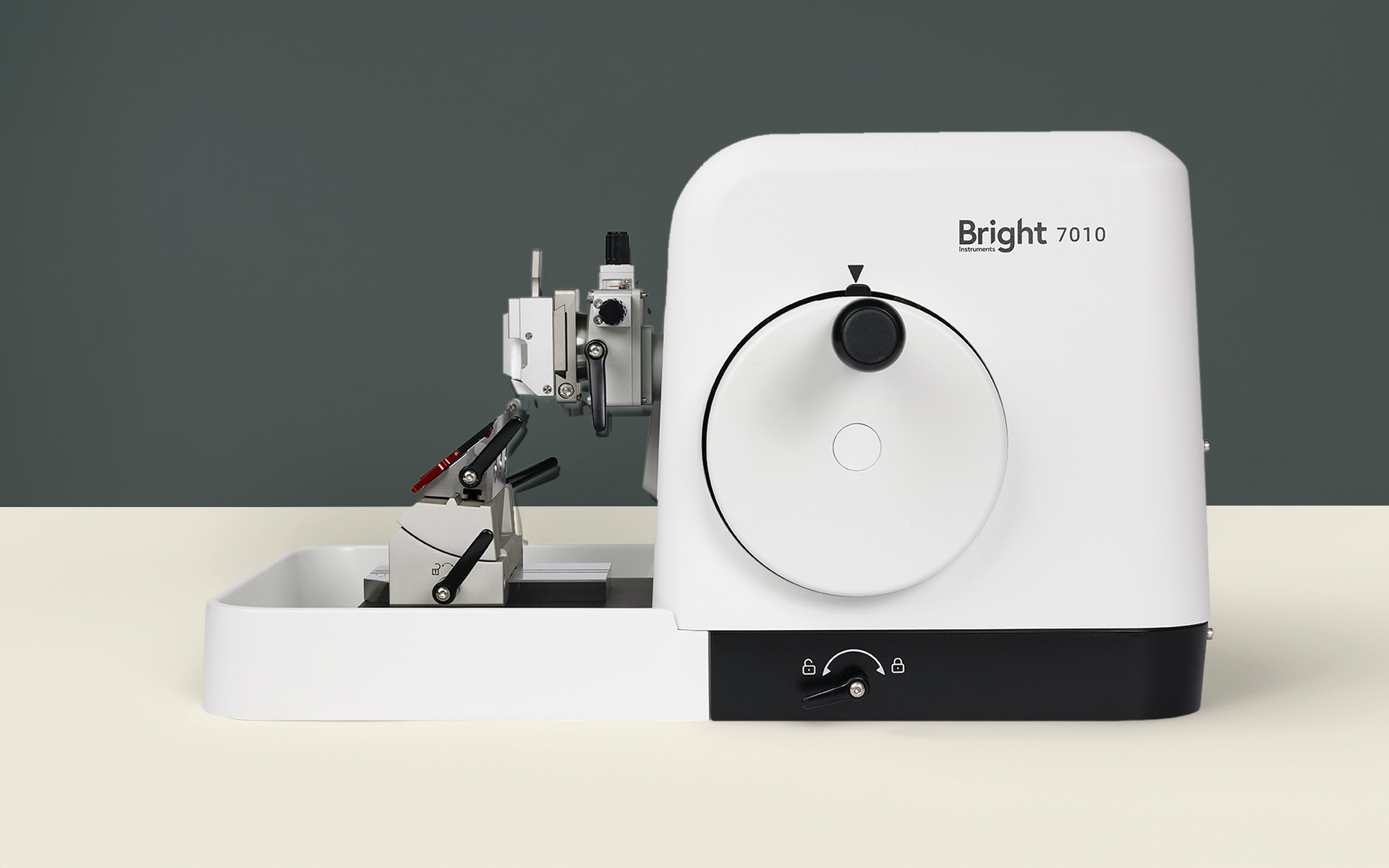

Rotary Microtome 7010 free standing lab equipment left side view

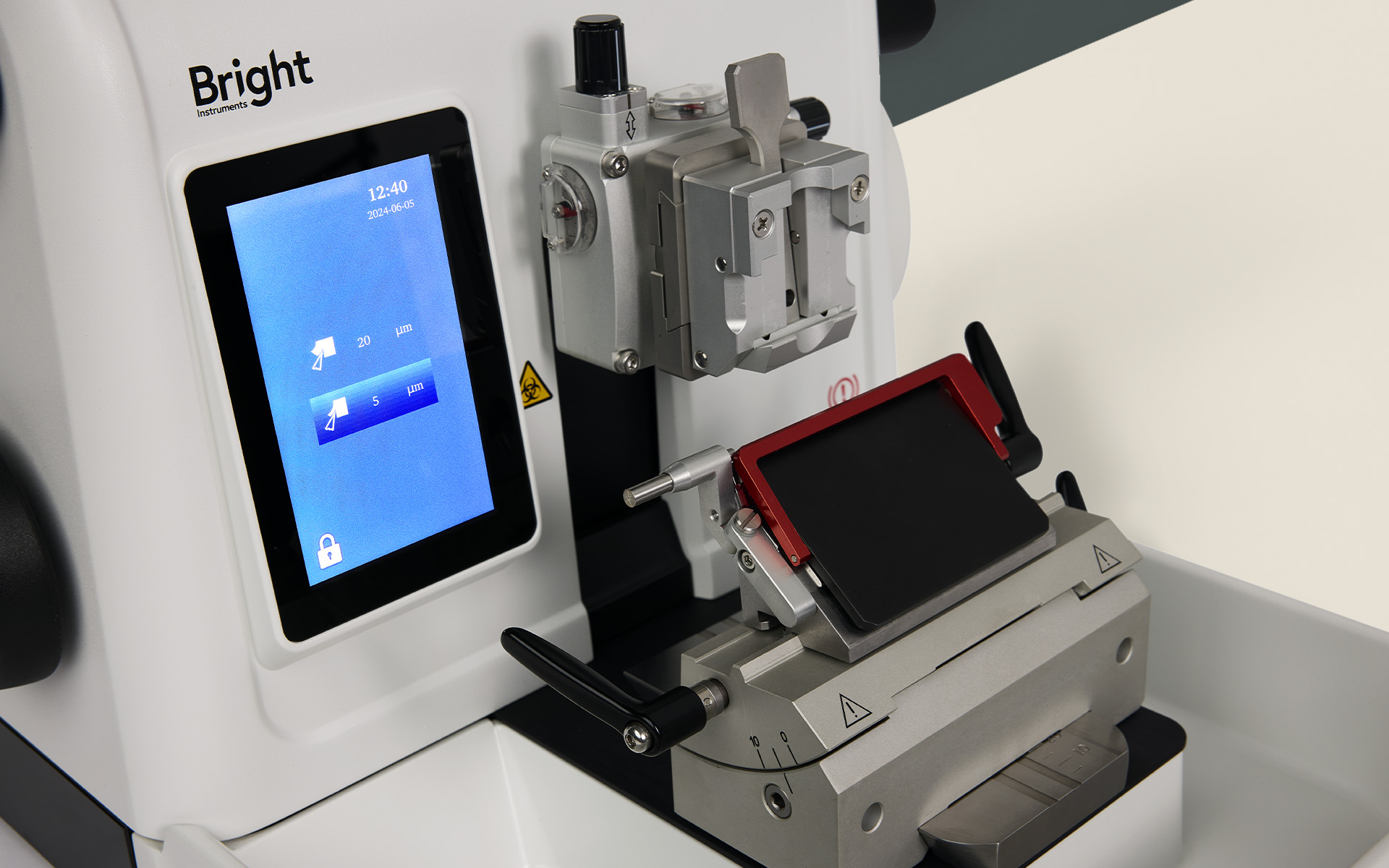

Rotary Microtome 7010 free standing lab equipment cropped

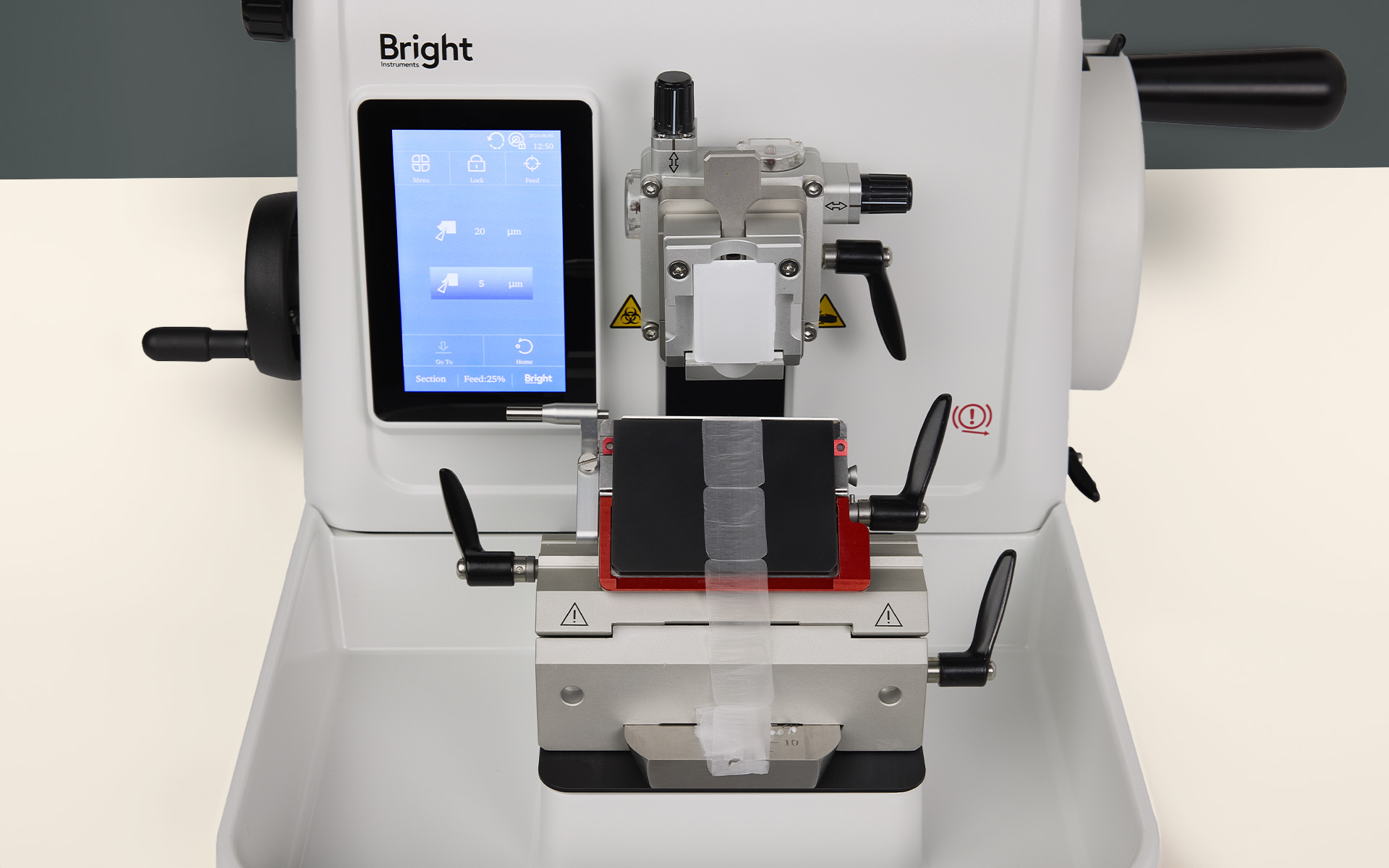

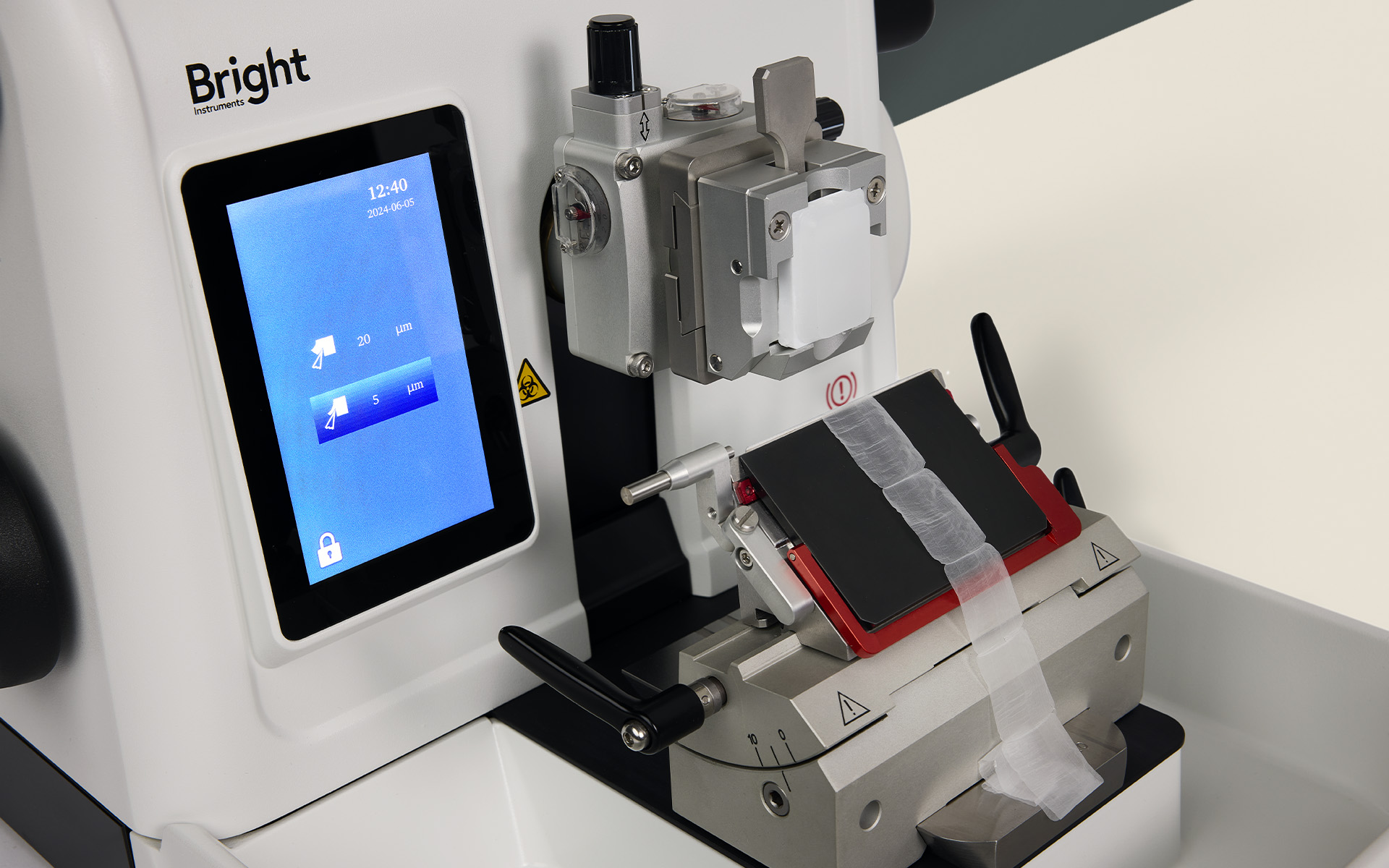

Rotary Microtome 7010 free standing lab equipment cutter cutting side view

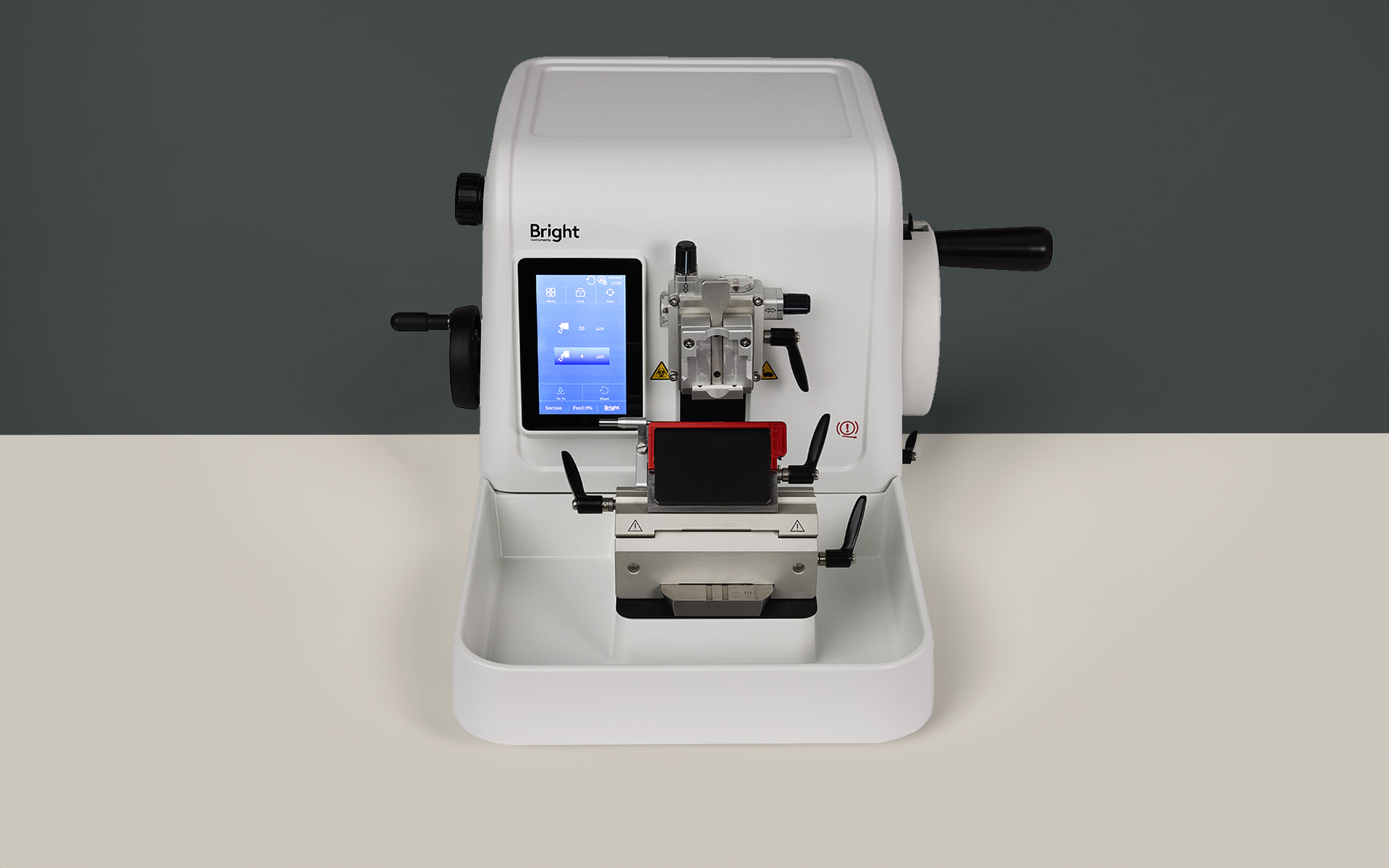

Rotary Microtome 7010 free standing lab equipment full view dark background

Full Details

Find out more about this exceptional product.

Rotary Microtome 7010

7010 Rotary Microtome
Section thickness range: 0.5 - 100 μm
Y
Trimming section thickness range: 1 - 800 μm
Y
Electric coarse feed: 0 - 1800μm/s adjustable
Y
Specimen retraction: 0 - 250μm adjustable
Y
Horizontal feed: 28mm
Y
Vertical stroke: 70mm
Y
Specimen orientation: X/Y axis 8°
Y
Maximum specimen size: 55*50*30mm
Y
W x D x H: 470*553*305mm
Y
Machine Weight
28KG
Rock mode
Y
Position memory function
Y

Accessories

There are a range of useful accessories for the 7010 Rotary Microtome:

Universal clamp (7010-F3)
Standard clamp (7010-F4)
Blade holder assembly (7010-F7)
Blade holder upper bracket (7010-F9)
Easy-clean waste tray (7010-F10)
Replacement low profile microtome blades (PB-1 Pro) using PLASMA technology

Resources

Brochure

Download
Product Video

Discuss your application

A technical demo can help you assess sectioning performance under conditions relevant to your research requirements. Get in touch with one of our experts to discuss your application.
